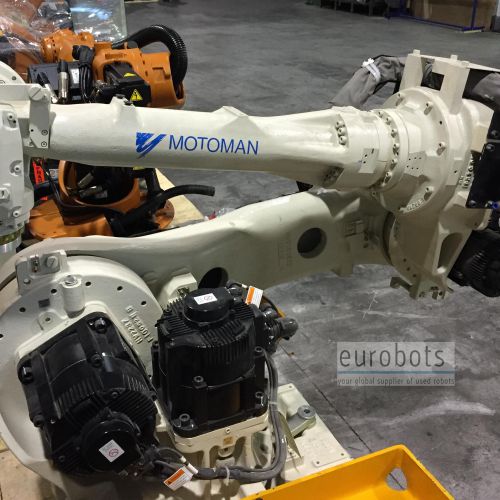

MPL80

Richiedi un Preventivo
In attesa di ulteriori scorte



  • High-performance, 5-axis robot with 80 kg payload capacity.
  • Highly versatile, the MPL80 robot is ideal for case palletizing, bag palletizing, order picking and many logistical tasks for end-of-line or distribution center automation.
  • Extensive 3,291 mm vertical reach, combined with 2,061 mm horizontal reach, enables palletizing loads up to 95 in. tall.
  • Internally routed airlines and cables from base to end-of-arm tool maximize reliability.
  • Internally routed fieldbus connection to T-axis/tool.
  • Compact base and slim-arm design of the MPL80 is ideally suited for minimum floorspace installation requirements.
  • Highly customizable to each palletizing system.



Main features

  • Maximum Load of Robot: 80 Kg
  • Number of axis: 5
  • Maximum Reach: 2067 mm
  • Repeatability: 0.07 mm
  • Controller: DX100

Robot Motion Speed [°/sec.]

  • Axis 1: 170º/s
  • Axis 2: 170º/s
  • Axis 3: 170º/s
  • Axis 4: 170º/s
  • Axis 5: 170º/s
  • Axis 6: 350º/s

Axis working range [°]

  • Axis S: ±180
  • Axis L: -90/+135
  • Axis U: -170/+251
  • Axis B: ±15
  • Axis T: ±360
Applicazioni
  • Pallettizzazione
  • Taglio Plasma
